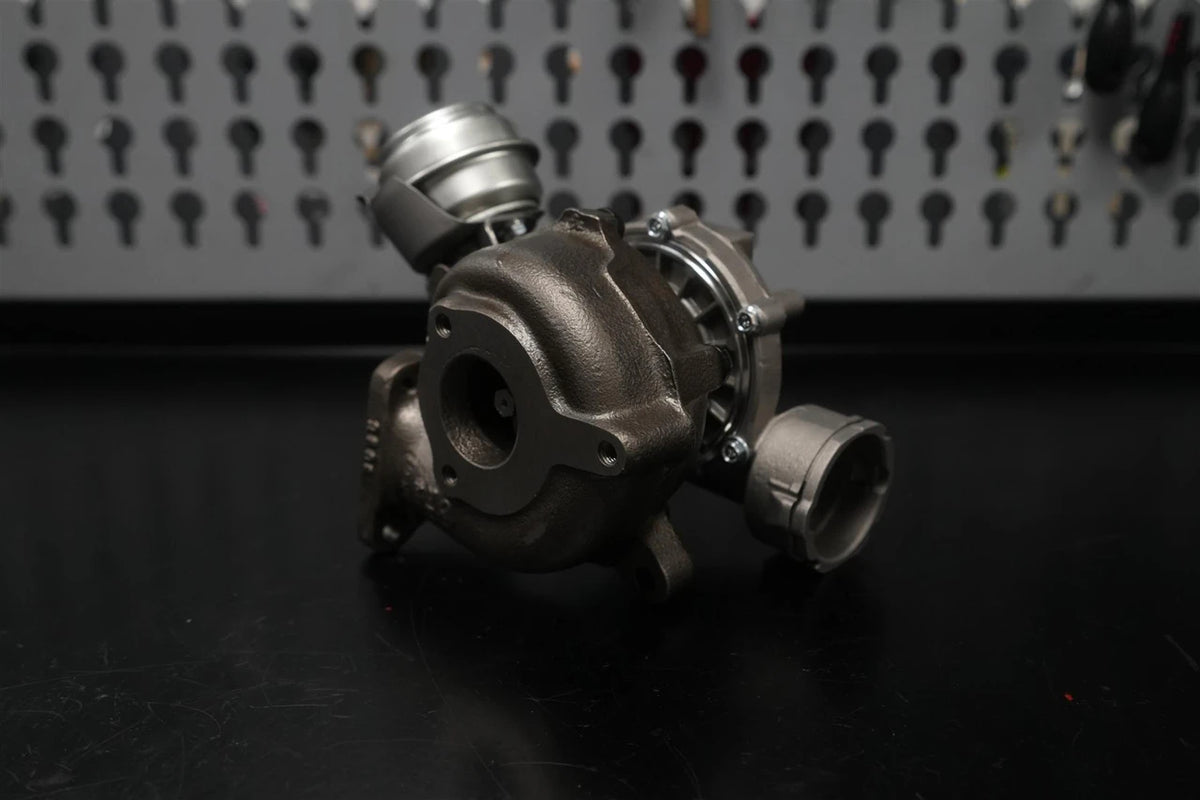

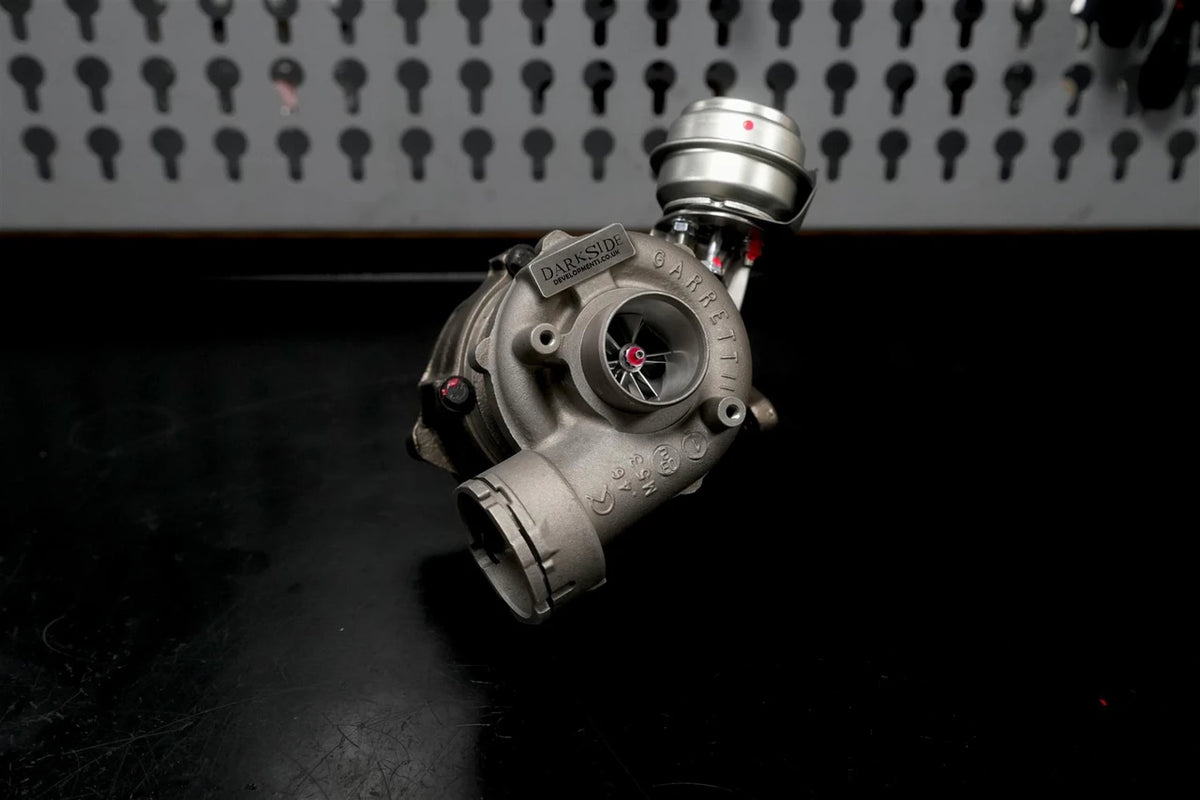

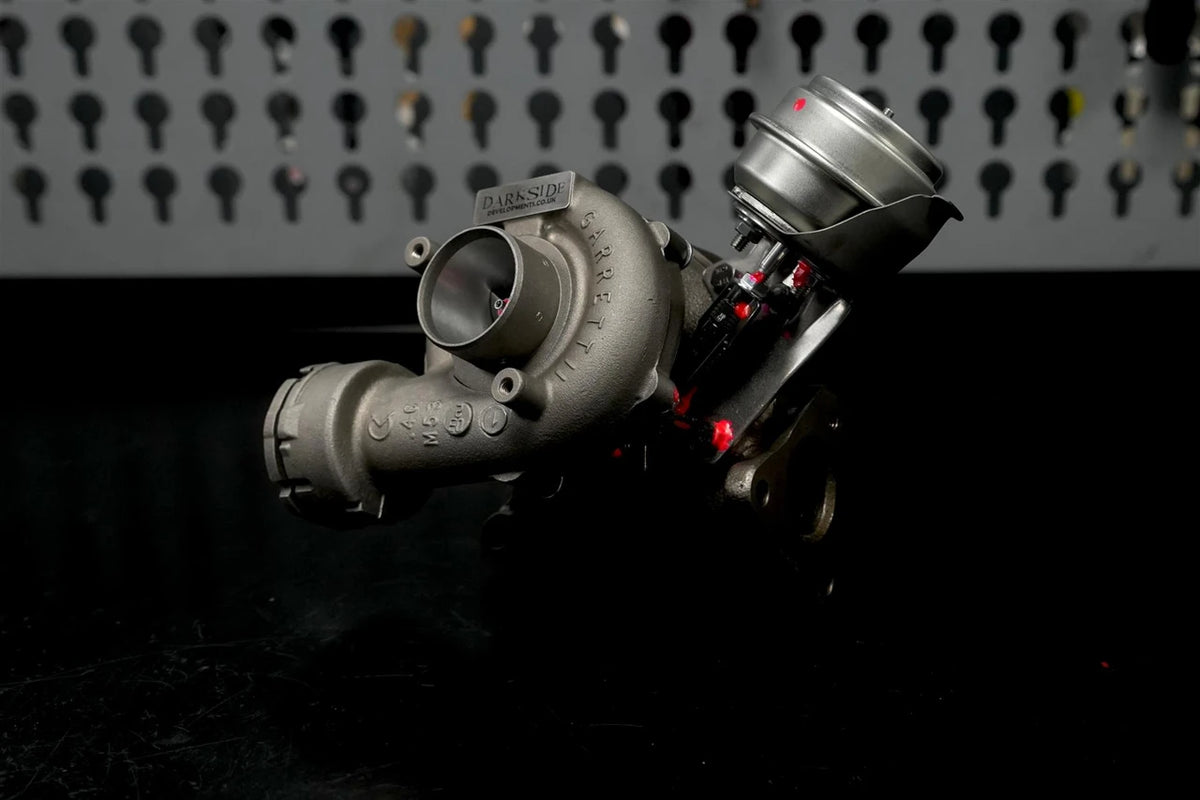

Darkside 52mm GT1749V Hybrid Turbocharger for Longitudinal 1.9 / 2.0 TDI 8v PD Engines

Darkside 52mm GT1749V Hybrid Turbocharger for Longitudinal 1.9 / 2.0 TDI 8v PD Engines

Darkside 52mm GT1749V / BV43 Hybrid Turbocharger Upgrade for Longitudinal Audi A4, A6, Skoda Superb and VW Passat 1.9 / 2.0 TDI 8v PD Diesel Engines

The ultimate bolt-on Peformance Turbocharger upgrade for your Longitudinal 1.9 PD130, PD136 and PD140 8v TDI Engines, commonly found in the Audi A4 B6 & B7, A6 C5, Skoda Superb Mk1 and VW Passat B5.5.

Upgrade for both the Borgwarner BV43 and the Garrett GT1749V and bolts directly to the cast manifold with no additional modifications needed, the perfect mild upgrade.

• Made in the UK
• 52mm Ultra High Flow Billet Hybrid Wheel
• Includes optional Fitting Kit
• Capable of up to 220bhp
• Direct Bolt on Upgrade

Turbocharger Specifications:

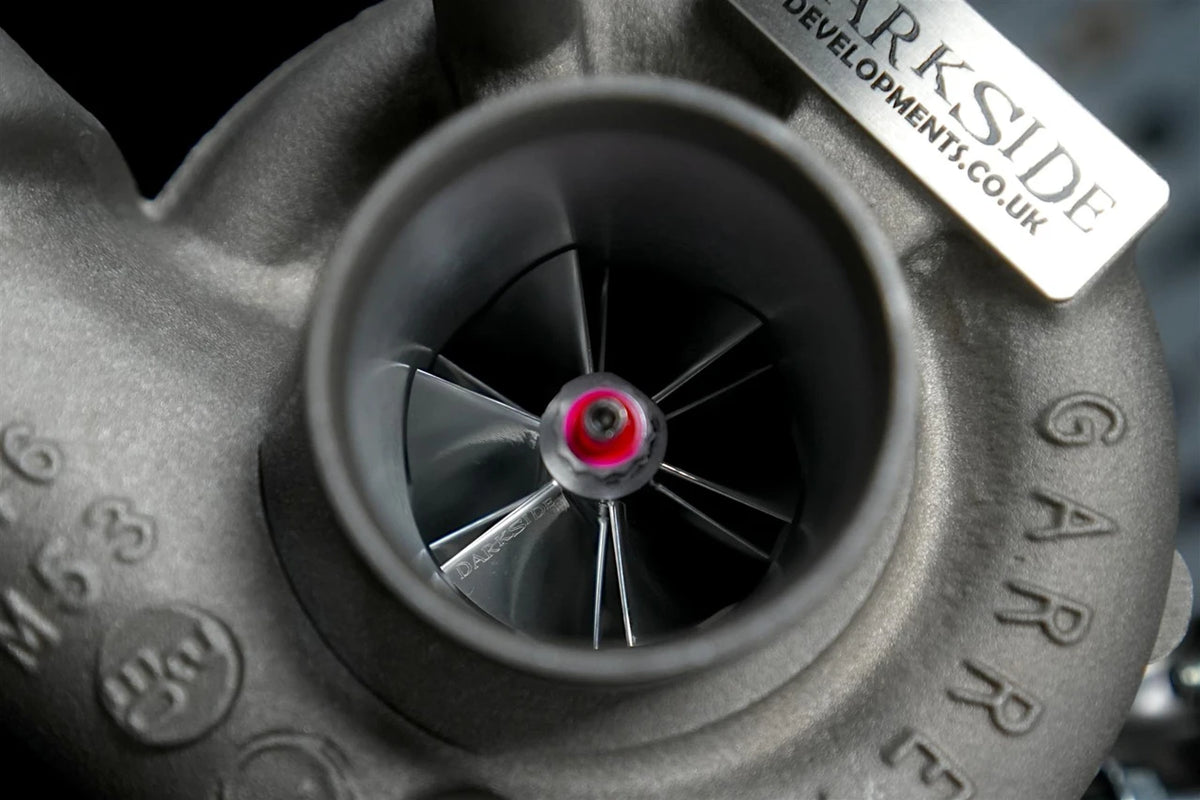

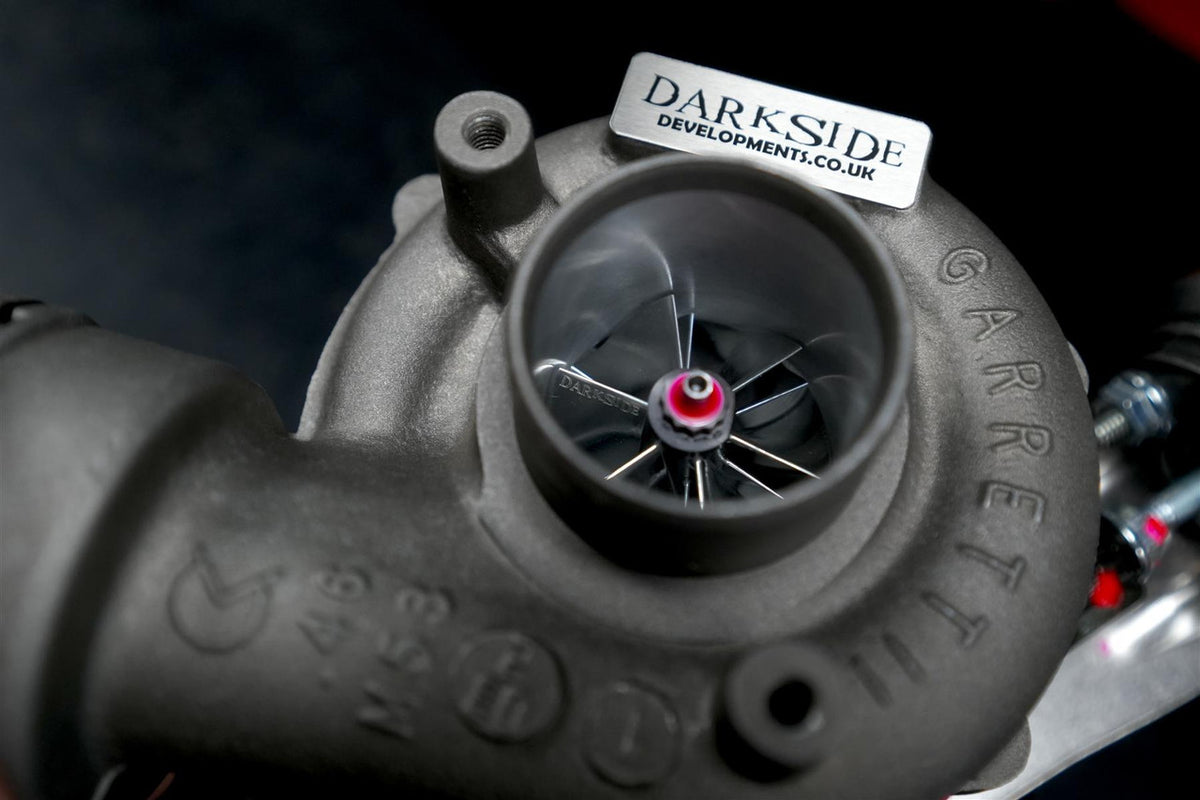

Billet Hybrid Compressor Wheel:

Inducer: 38.58mm
Exducer: 52mm
Trim: 55.04mm
Blade: 6+6

Turbine Wheel (Stock):

Inducer: 43.1mm
Exducer: 36mm
Trim: 69.7mm
Blade: 9+0

You will also require a 4 BAR MAP Sensor when installing this upgrade:
