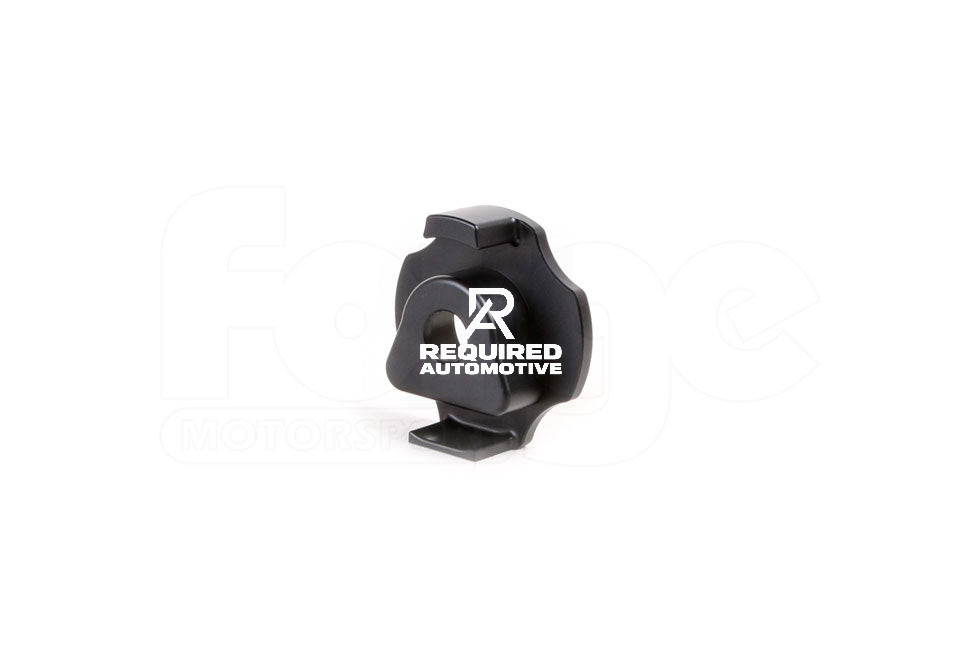

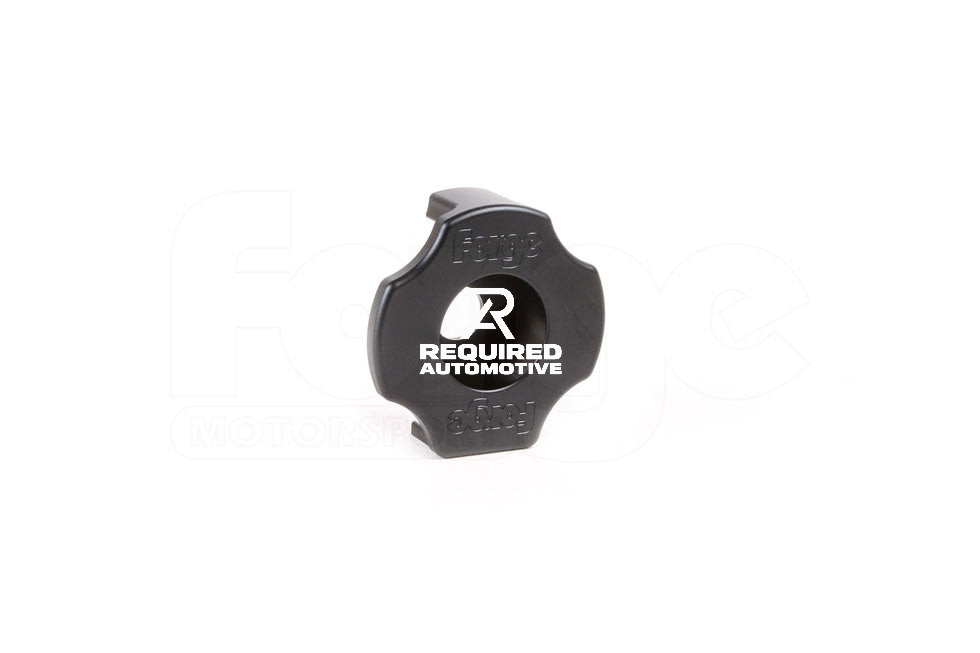

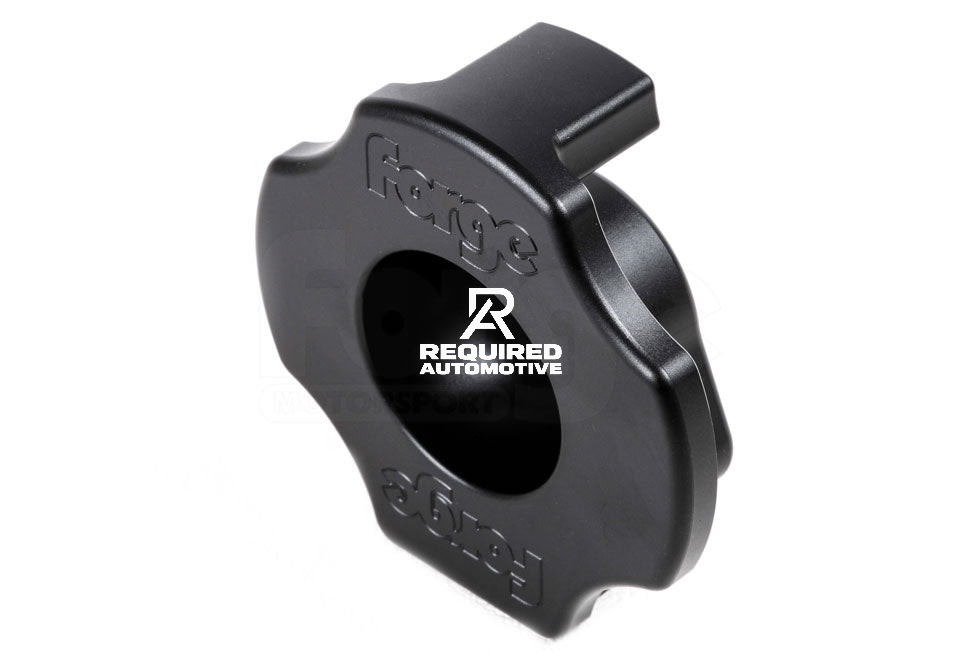

Dogbone Bush Insert (Type A)

• This precision-machined bush insert has been carefully designed to reduce the range of movement in the OEM Lower Dogbone bush that counter acts engine movement under heavy acceleration and braking, resulting a firmer feel when shifting.

• To be sure that you have selected the correct bush insert for your vehicle please check the fitment guide below:

• CNC Machined from a single billet of aluminium alloy. All Forge machined parts go through a rigorous quality control procedure to ensure that they have been made to the highest standard (working to a tolerance of less than 0.1mm).

• With a hardwearing black anodised finish which protects the part from oxidation to ensure it looks its best for longer.

• Developed in house at our Gloucester R&D workshop with working prototypes 3D printed and test fitted.

• Part of a wider range of bush inserts Forge currently have in development, please see the Forge Motorsport website for details.

This Bush Insert appears on the following vehicles:

• Audi RS3 2.5TFSI.
• Audi TTRS 2.5TFSI.
• Audi TTRS 8s
• Audi TTS 2.0TSFI.
• Audi  S3
• Seat Leon (290-300bhp) 2.0TFSI.
• Volkswagen Golf MK7 GTI 2.0TFSI.

*When fitting please Torque to 135 Nm

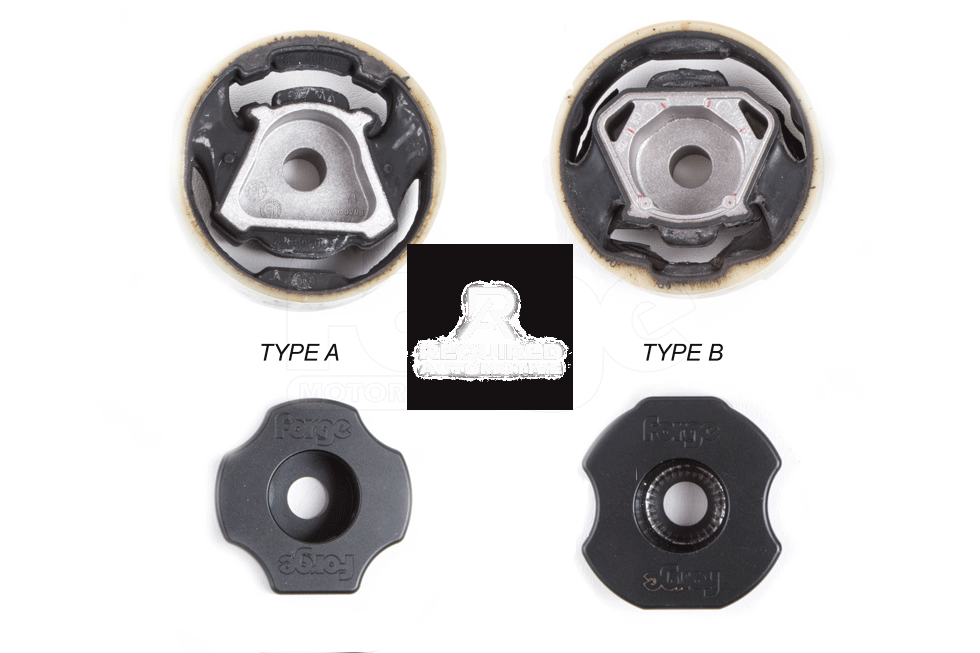

If your vehicle has this bush (part number : 5Q0 198 037 B) fitted  you need a type “A” insert, part number FMAM-B2

If your vehicle has the alternative bush (part number: 5Q0 198 037 C) fitted you need type “B” insert, part number FMAM-B3
