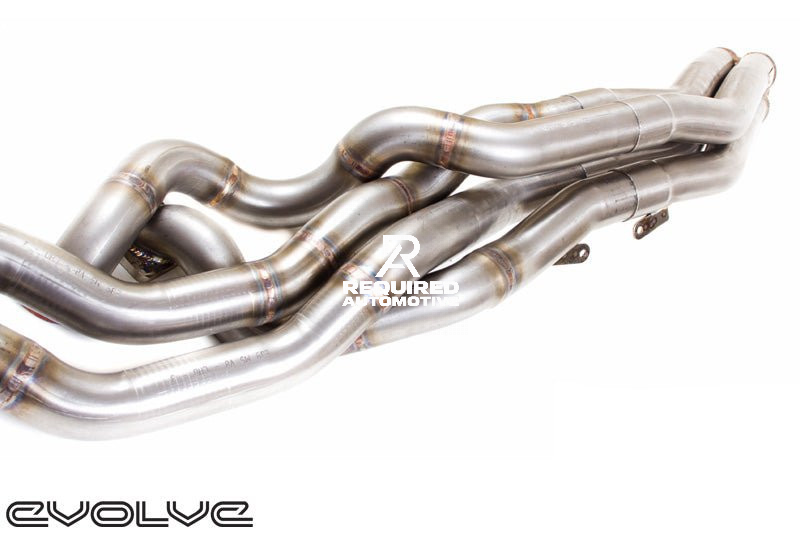

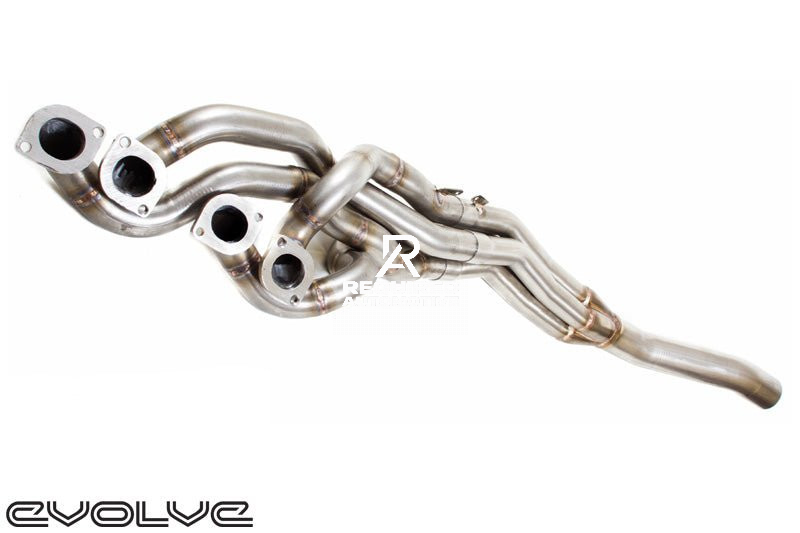

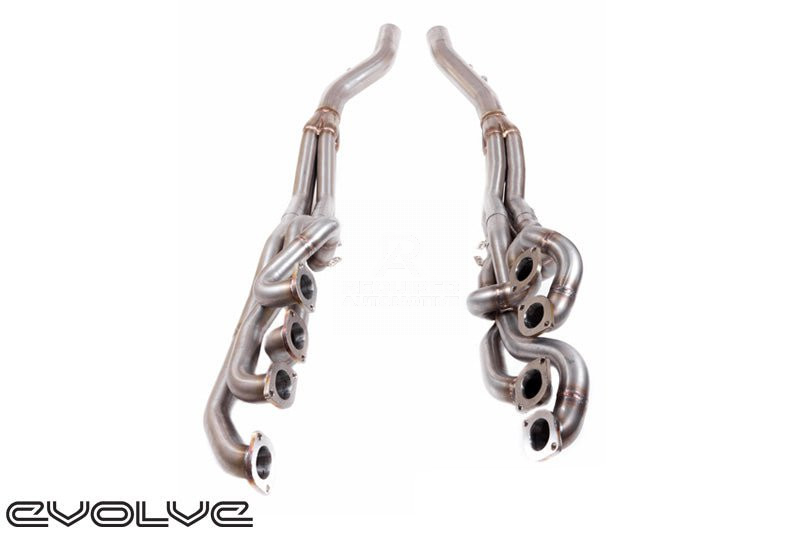

Evolve LHD 4-1 Stepped Medusa Manifolds - BMW E39 M5

FOR LEFT HAND DRIVE CARS ONLY

The largest major restriction point of the E39 M5 S62 V8 engine is the exhaust manifolds / headers.
Changing the exhaust system without changing the headers gives no gain in power.  In fact, changing the header back system gives little if any power gain!

The factory items are very poorly designed and looking at them it is clear funds were saved in the department.  No other M Power car has ever had headers as poorly designed as on the S62 engine.

Performance headers are already available on the market but most compromises torque below 5000rpm especially under part throttle driving.  The very highlight of the S62 engine is it exceptional torque at the low to mid engine speeds.

Evolve produced an 4-1 design which not only allows for more power at the higher rpm's but also enhances the strong points of the S62 engine with almost 400 lb.ft torque (stock torque is 368 lb.ft) from 2000-5000rpm.  Above 5000rpm power increased by anything from 25-40hp depending on the mechanical setup of the engine.

The Evolve 4-1 headers can be used in isolation without any other performance upgrade and give a minimum gain of 30 hp and 27 lb/ft torque.

This upgrade represents the single largest performance upgrade with more power and torque accross all RPM points which in turn allows for much improved acceleration.

Noise levels are only slightly increased with the headers alone but the engine does take on a more purposeful note.  For more noise please look at our exhaust range.

Much consideration has been giving to ease of fitment.  Subframe removal is not require during the installation.

In conjunction with the Evolve software and Intake system the S62 V8 will go from an average of 390 bhp / 368 lb.ft to 445 bhp / 400+ lb.ft

Overview:

• Min. +25bhp / +25 lb/ft
• 4-1 Step Design Design allowing wider power band power increase (allowing faster overall accelerating)
• Constructed in Italy from T304 Stainless Steel

Dyno Graph (Headers + Evolve Exhaust only Conversion)

HEADERS MUST BE USED IN CONJUNCTION WITH EVOLVE SPORTS CAT OR DE-CAT
