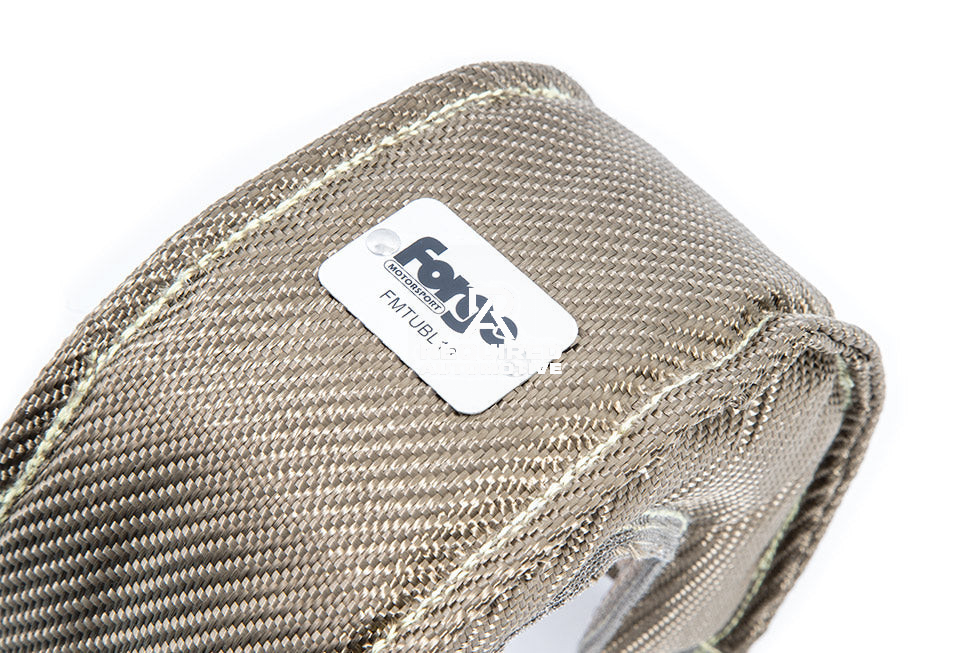

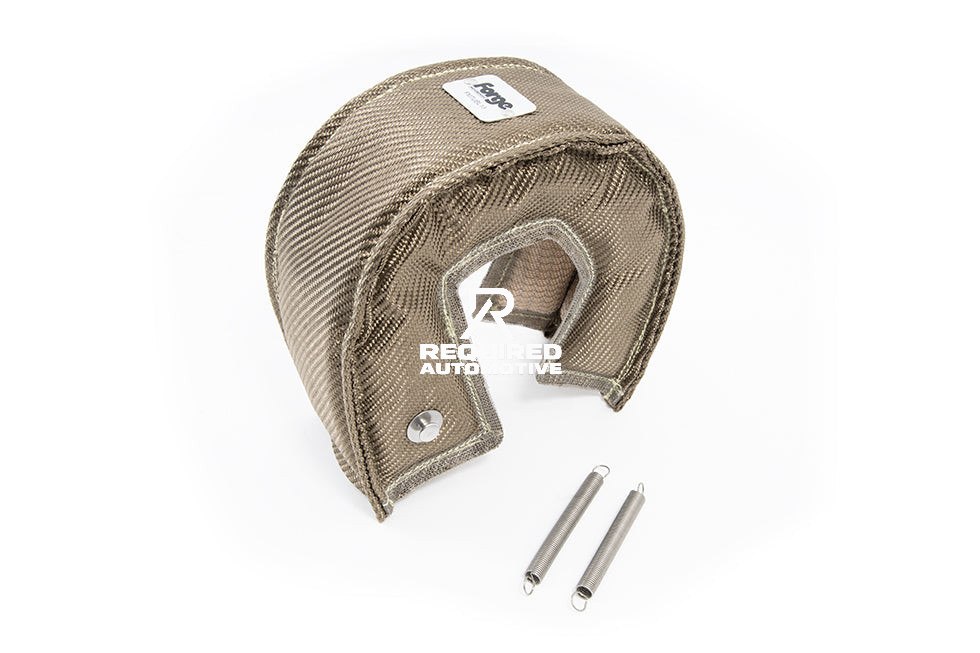

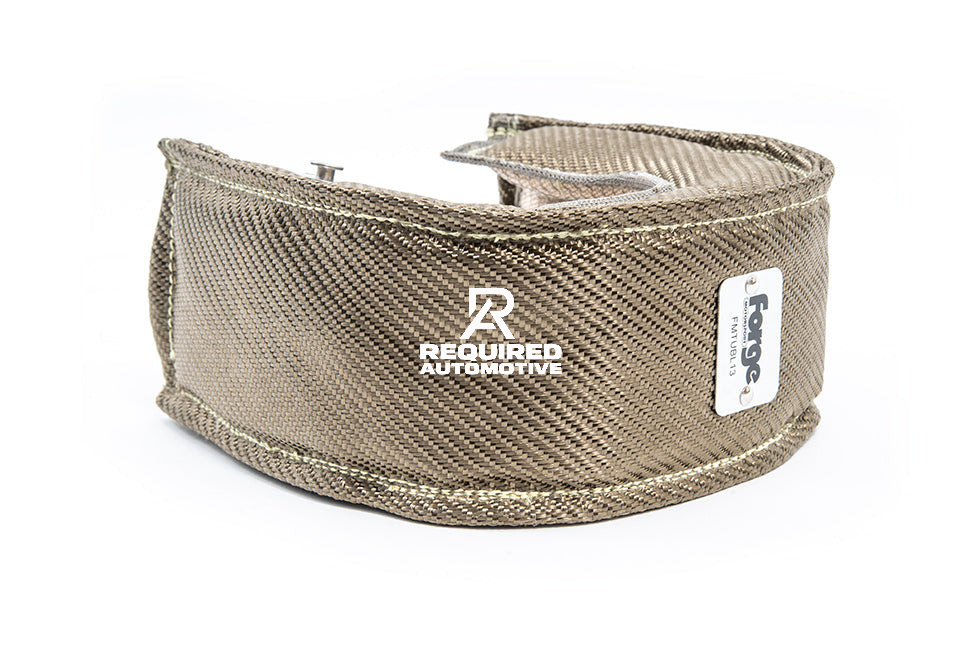

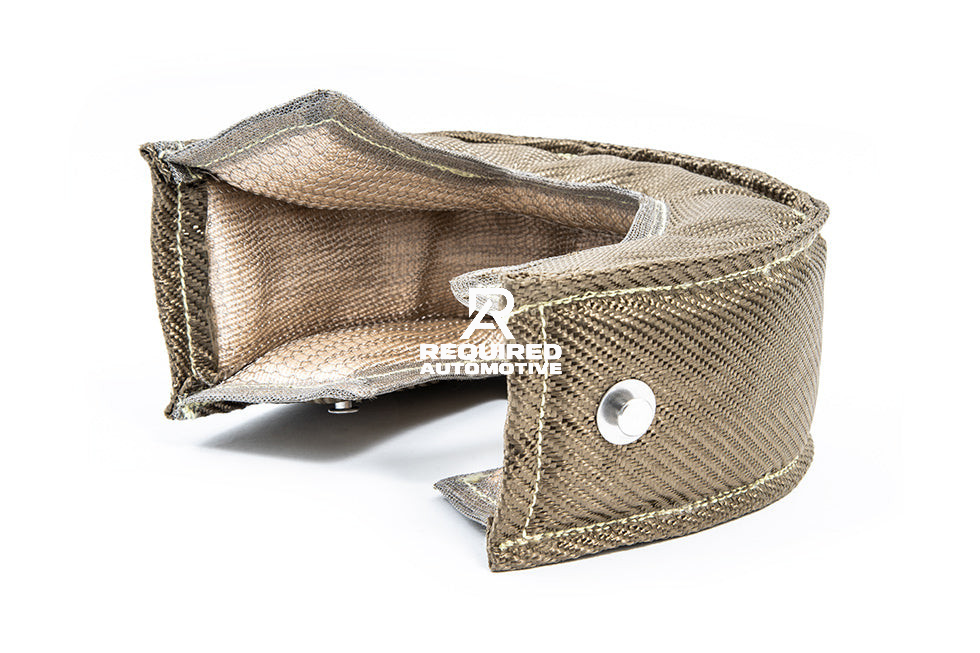

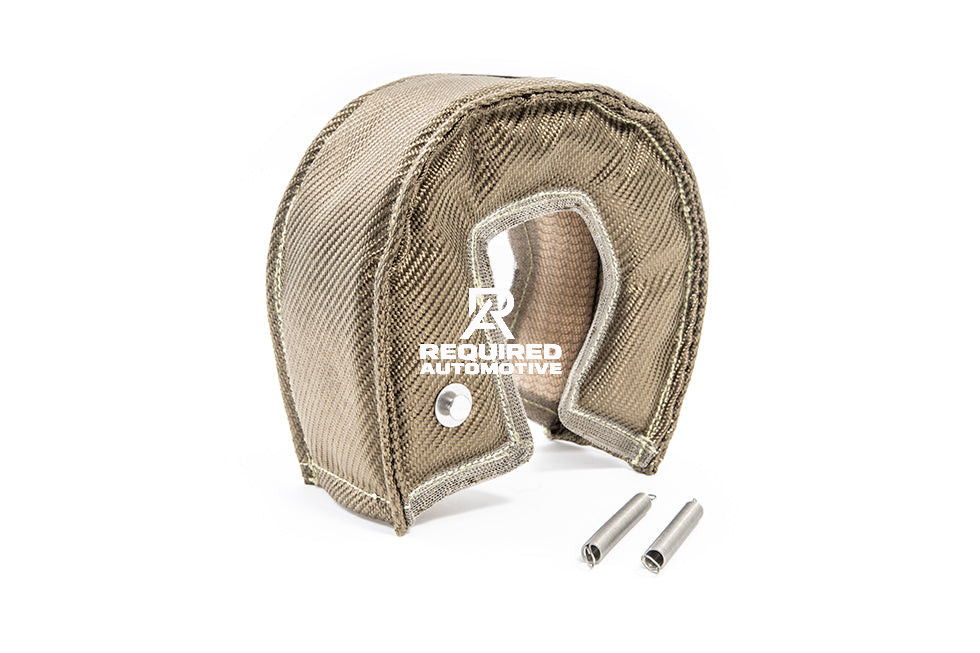

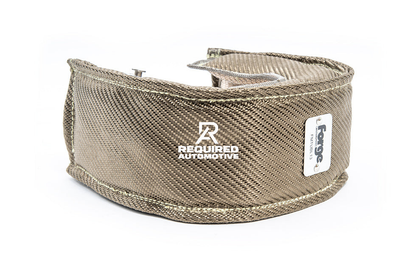

T3 Turbo Blanket

The Forge Motorsport FMTUBL13 has been designed for the use with externally wastegated Garrett GT3071R, GTX3076R, and G25-550 and KP39, Comp-RS341 turbochargers. The turbo blanket also fits some internally gated turbo and is not limited to the above application list. This turbo blanket is designed to isolate the radiant heat produced by the turbocharger insulating the hot side of the turbo’s compressor housing ensuring the cold sides work to its optimum efficiency.

This design has been created to work in the harshest of environments and proven to withstand temperatures up to 2500 °F or 1370°C of radiant heat which will assist in protecting and prolonging the life of engine components. Design innovation keeps the heat of the exhaust gases contained within the hot side of the turbocharger, away from the cool side and the intake path which helps reduce turbo lag and air intake temperatures resulting in more power.

Please note that a turbo blanket will lose its flexibility over the first few heat cycles as the material cures, so once fitted it should not be removed as this can cause damage to the blanket.

• Stainless Steel Rivets
• Carbon fabric outer shell
• Calcium Magnesium Silicate Wool constructed Inner Core
• High temperature Silica fabric
• To suit T3 Turbo chargers
